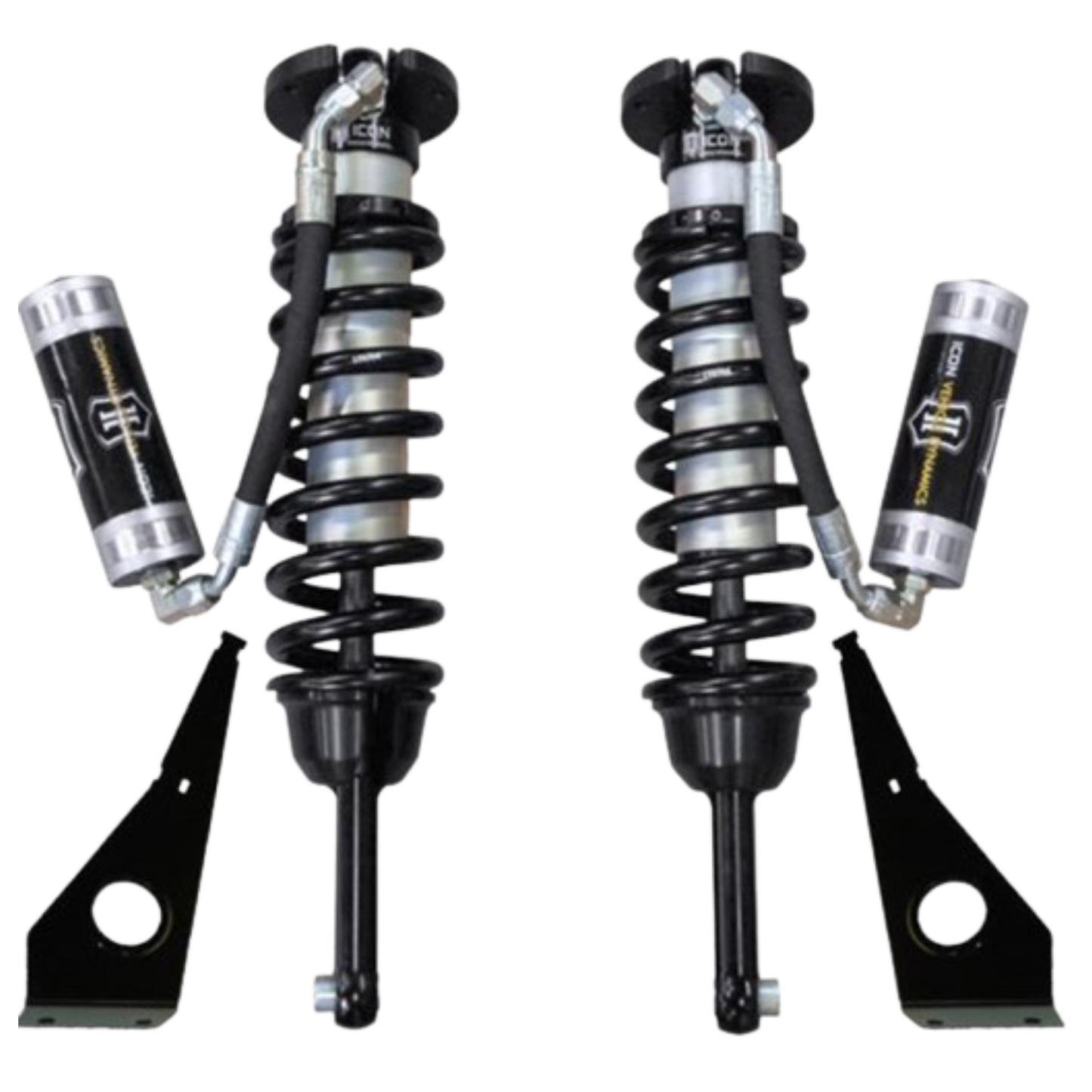

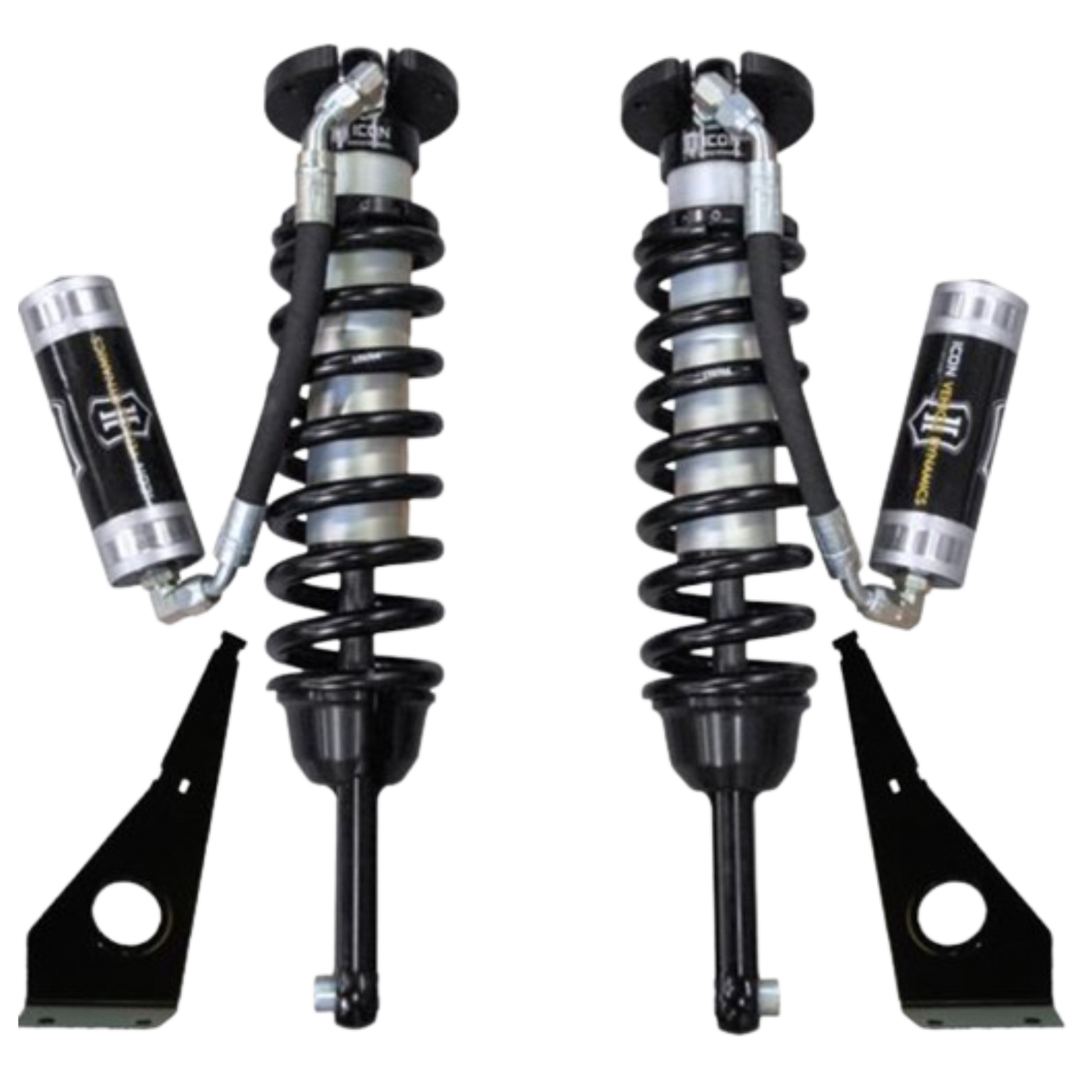

Icon | External Reservoir Coilovers | Equipped With 700lb Coil Springs | 2005-2023 Toyota Tacoma | 58730-700

Icon External Reservoir Coilovers Equipped With 700lb Coil Springs, 2005-2023 Toyota Tacoma

58730-700

Application:

2005-2023 Toyota Tacoma

Features and Benefits:

• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Vehicle specific tuned for superior shock damping and control
• Kit Includes Sway bar relocation brackets
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• CAD-plated threaded body
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearings
• Completely re-buildable
• Hose Length Optimized for Increased Fluid Transfer
• External Reservoirs Ensures Maximum Cooling
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75"
• APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
• APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25" Beyond Maximum
• TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
• TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
• TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
• TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
