Icon | Stage 2 Suspension System w/Tubular Upper Control Arms | 0-2.13" Lift

Icon 2023-2024 Toyota Sequoia, 0-2.13" Lift, Stage 2 Suspension System, Tubular

K53232T

Features And Benefits:

• Vehicle specific design for 2023+ Toyota Sequoia
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 0-2.13" of front lift over stock with the use of snap ring
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• Dual rate rear coil springs improve performance and ride quality while providing 3" of rear lift
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• APPLICATION NOTE #142: Not Compatible With Tundra/Sequoia Equipped With Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #144: Not Compatible With Trd Pro
• APPLICATION NOTE #149: For 4Wd Models Without Trd Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For Trd Pro.
• TECH NOTE: Most Sequoia sub-models will have front lift height range of 0-2.13" over stock

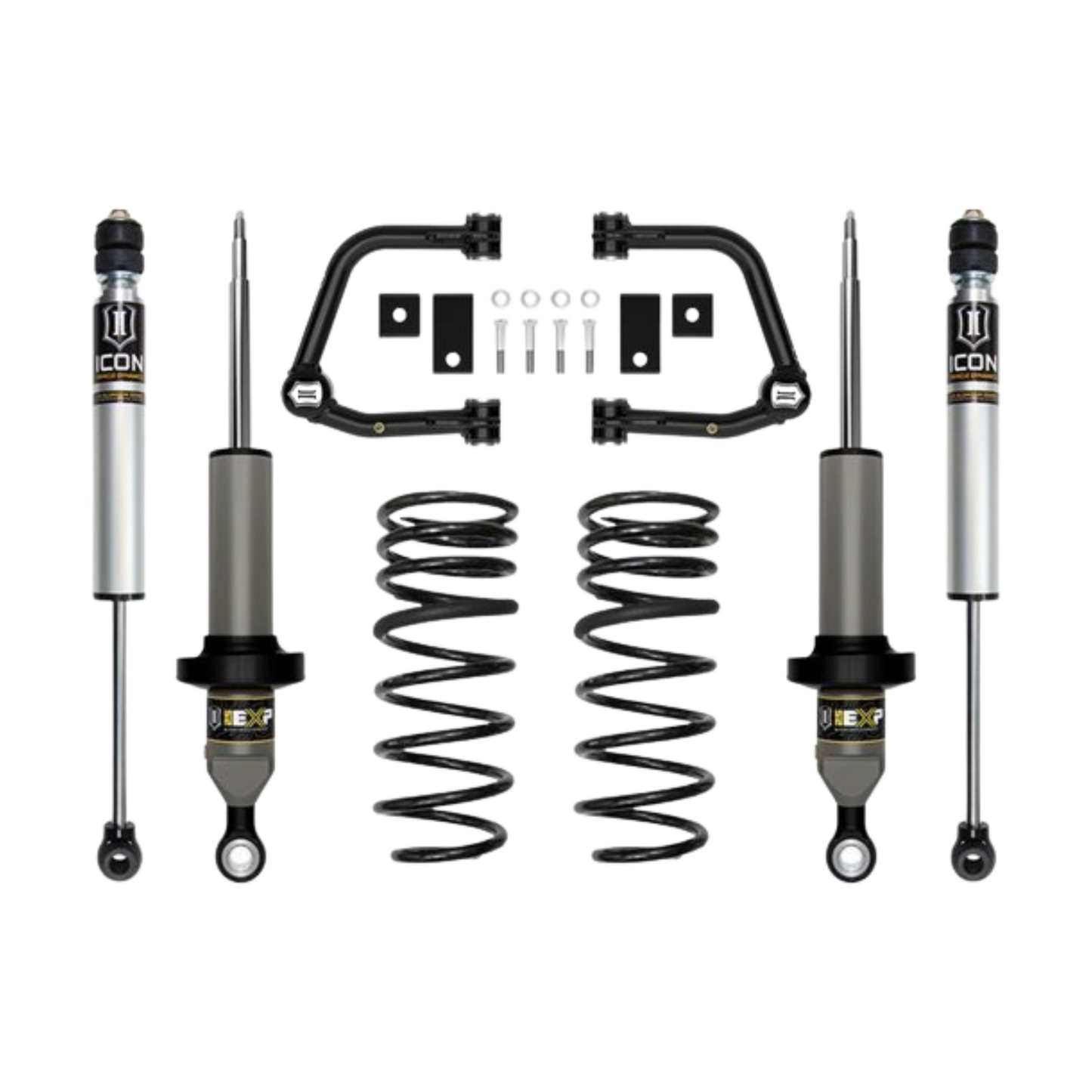

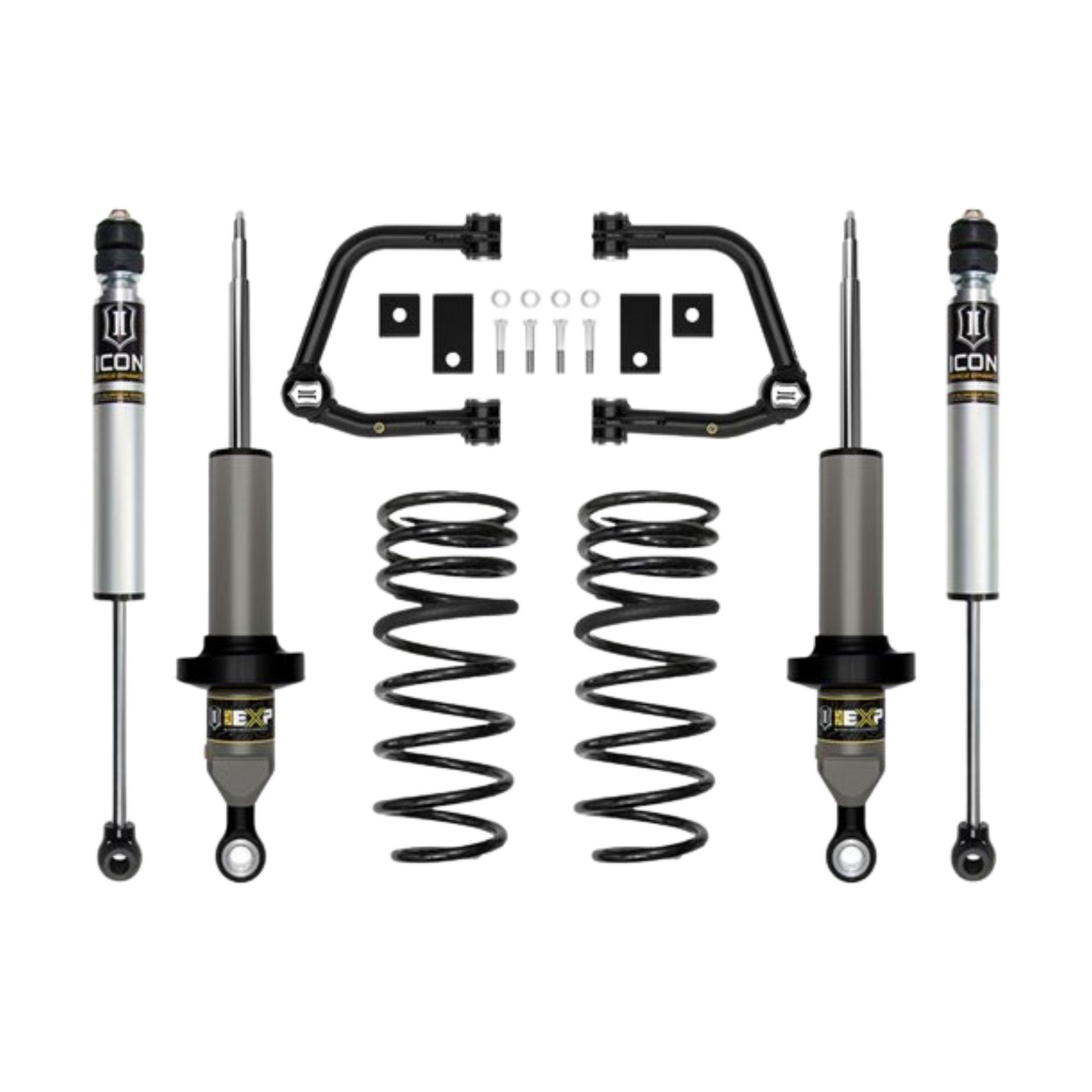

System Components:

• 58671 (QTY: 2) | 22-23 TUNDRA/23 SEQUOIA FRONT 2.5 EXP COILOVER
• 58461DJ (QTY: 1) | 22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT
• 55154 (QTY: 1) | 22-23 TUNDRA/23 SEQUOIA SWAY BAR DROP KIT
• 56516 (QTY: 2) | 22-23 TUNDRA 0-1.5"/23 SEQUOIA 0-3" REAR 2.0 VS IR
• 51212 (QTY: 1) | 23 SEQUOIA 3" DUAL RATE REAR SPRING KIT
