Icon | 0-2" Lift | Stage 1 EXP Suspension System | Toyota Tacoma (2005-2023) | K53220

Icon 2005-2023 Toyota Tacoma 0-2" LIFT, Stage 1 EXP Suspension System

K53220

Application:

2005-2023 Toyota Tacoma

Features and Benefits:

• Vehicle specific design for 2005-2023 Toyota Tacoma
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 0-2" of front lift over stock with the use of snap ring
• Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
• Allows for full wheel travel without overstressing OE components
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Minor fender trimming may be required)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #110: Trimming required for recommended tire size
• APPLICATION NOTE #144: Not compatible with TRD Pro
• TECH NOTE: Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs
• TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock

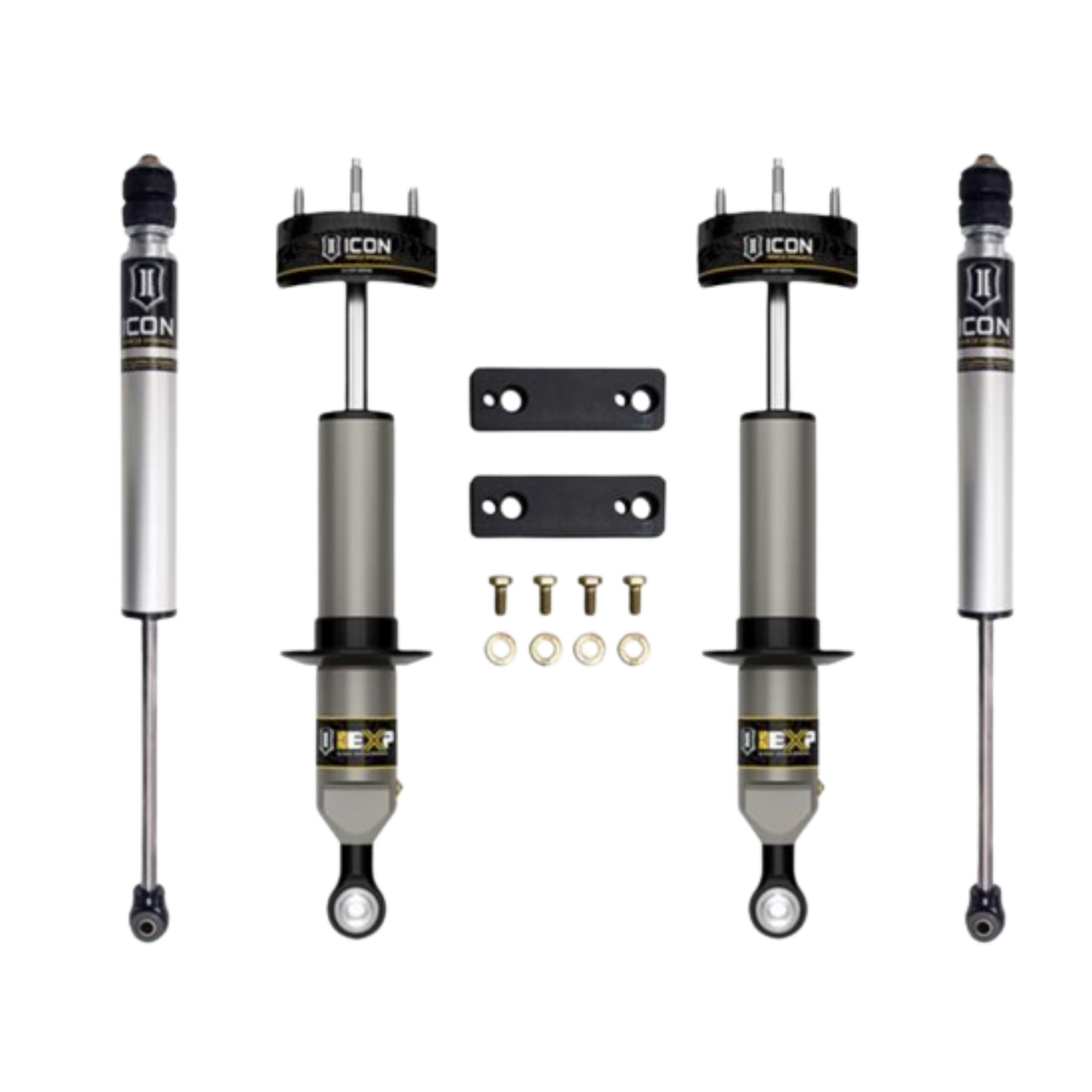

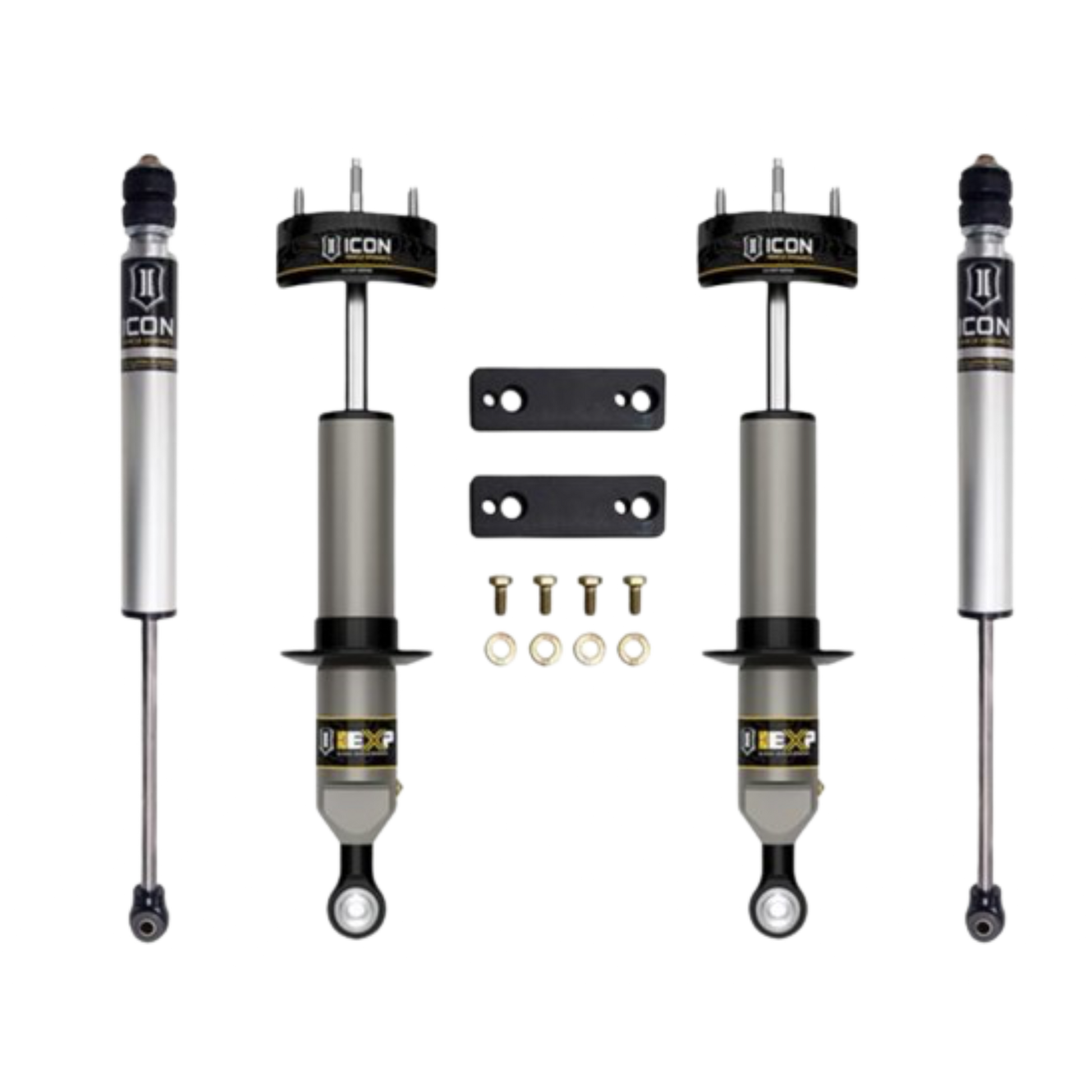

System Components:

• 58632 (QTY: 2) | 05-23 TACOMA FRONT 2.5 EXP COILOVER
• 611030 (QTY: 1) | 05-UP TACO/07-09 FJ SWAYBAR RELOCATION KIT
• 56503 (QTY: 2) | 05-23 TACOMA 4WD 0-1.5" REAR 2.0 VS NR
