Icon | Stage 2 Suspension System | 0-3.5" Lift - (2005-2015) Toyota Tacoma | 0-2.75" Lift - (2016-2023) Toyota Tacoma | K53002

Icon 2005-2015 Toyota Tacoma 0-3.5" Lift, 2016-2023 Toyota Tacoma 0-2.75" Lift, Stage 2 Suspension System

K53002

Application:

2005-2015 Toyota Tacoma

2016-2023 Toyota Tacoma

Features and Benefits:

Dramatically improve ride quality. Height adjustable while mounted on the truck. No need for spring compressor. Will provide up to 3.5" of front lift height on 2005-2015 model Tacoma and up to 2.75" on 2016-2023 model Tacoma.

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
• APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
• APPLICATION NOTE #109: 2016-2023 Tacoma Llft range Is 0-2.75"
• APPLICATION NOTE #110: Trimming required for recommended tire size
• APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 can be installed to increase preload .25" beyond maximum
• TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
• TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock.

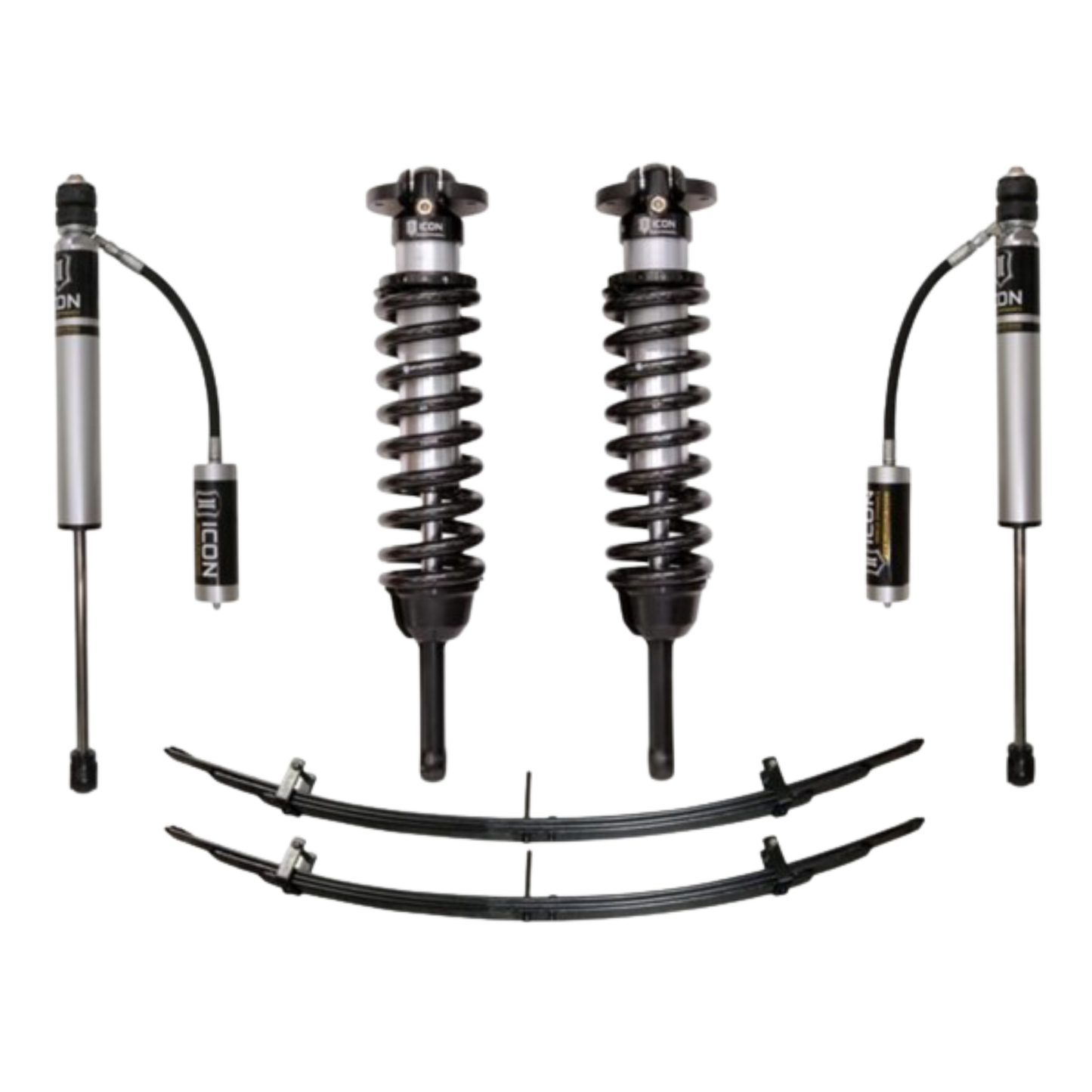

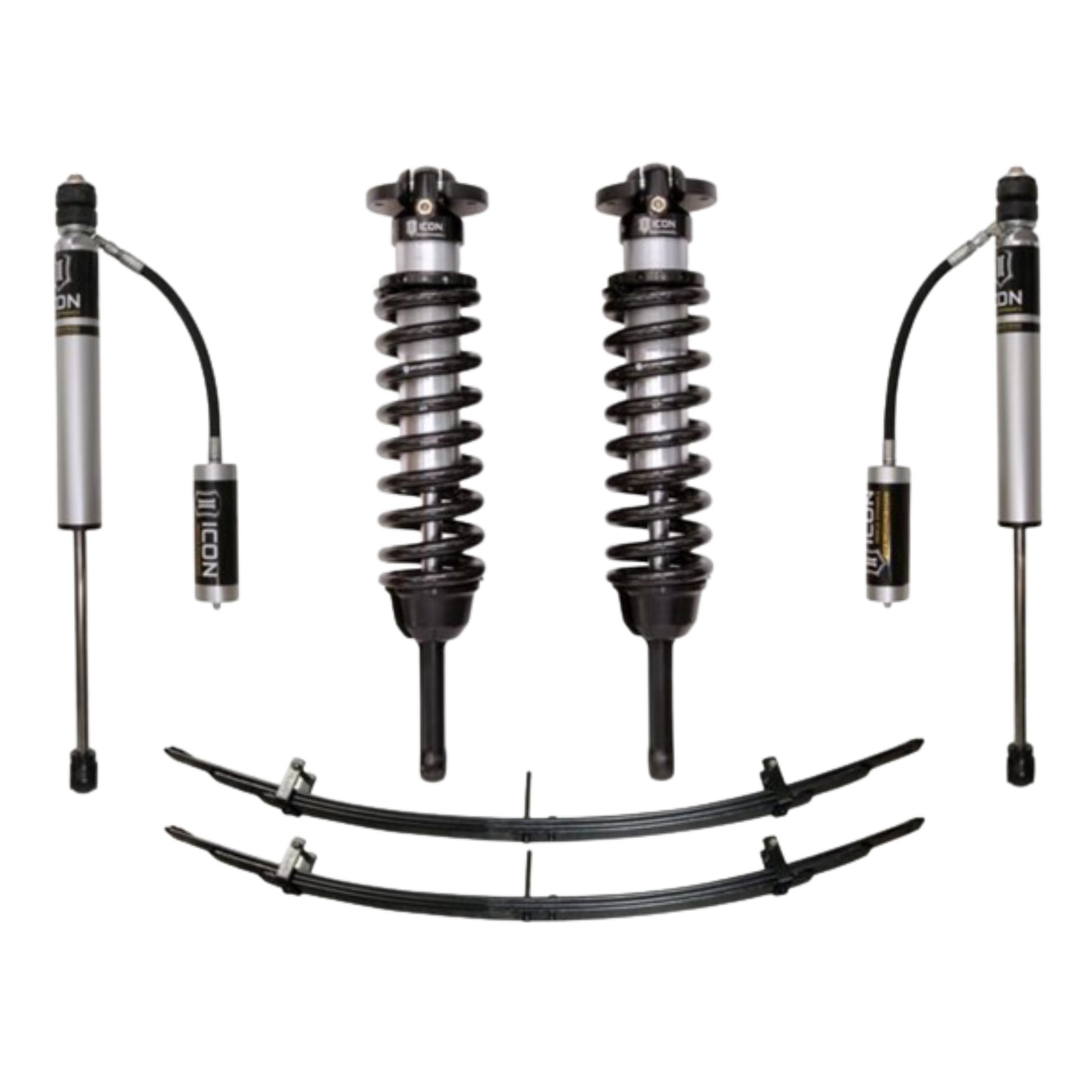

System Components:

• 58630 (QTY: 1) | 05-23 TACOMA 2.5 VS IR COILOVER KIT
• 51100 (QTY: 1) | 96-23 TACOMA/00-06 TUNDRA 1.5" ADD-A-LEAF KIT
• 56503R (QTY: 2) | 05-UP TACOMA 4WD 0-1.5" REAR 2.0 VS RR
