Icon Vehicle Dynamics

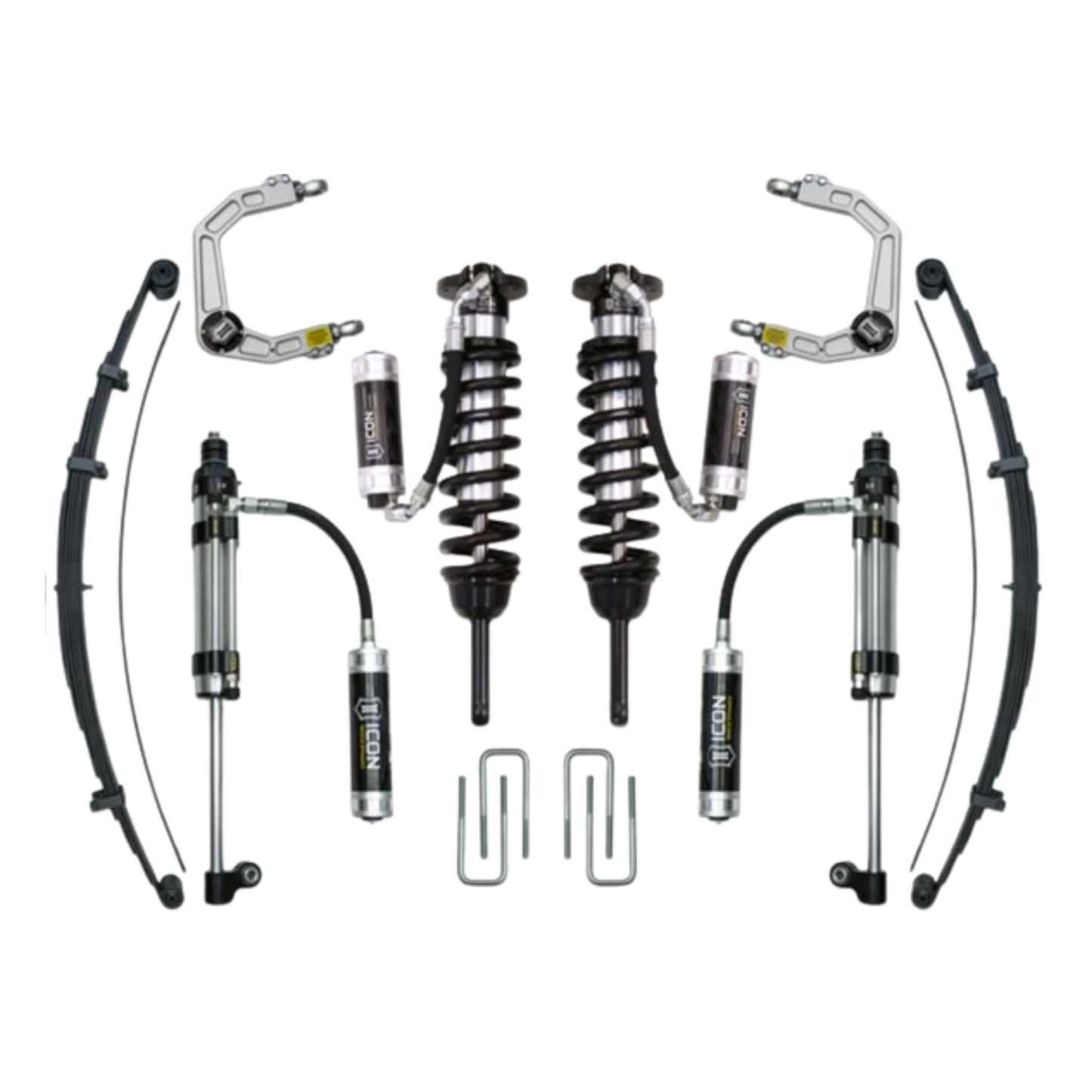

Icon | Stage 10 Suspension System | W/Billet Upper Control Arms | 0-3.5" Lift - (2005-2015) Toyota Tacoma | 0-2.75" Lift - (2016-2023) Toyota Tacoma | K53010

Icon | Stage 10 Suspension System | W/Billet Upper Control Arms | 0-3.5" Lift - (2005-2015) Toyota Tacoma | 0-2.75" Lift - (2016-2023) Toyota Tacoma | K53010

Regular price $6,533.28 USD
Regular price $7,259.20 USD Sale price $6,533.28 USD
Sale Sold out
Shipping calculated at checkout.

Icon 2005-2015 Toyota Tacoma 0-3.5" Lift, 2016-2023 Toyota Tacoma 0-2.75" Lift, Stage 10 Suspension System W/Billet Upper Control Arms

K53010


Application:

2005-2015 Toyota Tacoma

2016-2023 Toyota Tacoma


Features and Benefits:

Dramatically improve ride quality. Height adjustable while mounted on the truck. No need for spring compressor. Will provide up to 3.5" of front lift height on 2005-2015 model Tacoma and up to 2.75" on 2016-2023 model Tacoma. External reservoirs for more oil cooling. Dampening adjustment knobs on the coilovers to make the ride quality more firm or more soft with the twist of a knob. Billet upper control arms equipped with Delta Joints. Omega rear shocks. Leaf springs and longer ubolts.


Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00" Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
  • APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
  • APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
  • APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.
  • APPLICATION NOTE #109: 2016-2023 Tacoma llft range Is 0-2.75"
  • APPLICATION NOTE #110: Trimming required for recommended tire size
  • APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 can be installed to increase preload .25" beyond maximum
  • TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
  • TECH NOTE: Most Tacoma submodels withh have rear lift height range of 1.875-2.625", depending on rear spring configuration and rear weight
  • TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" and 1.375-2.125" of rear lift over stock, depending on rear spring configuration and rear weight.

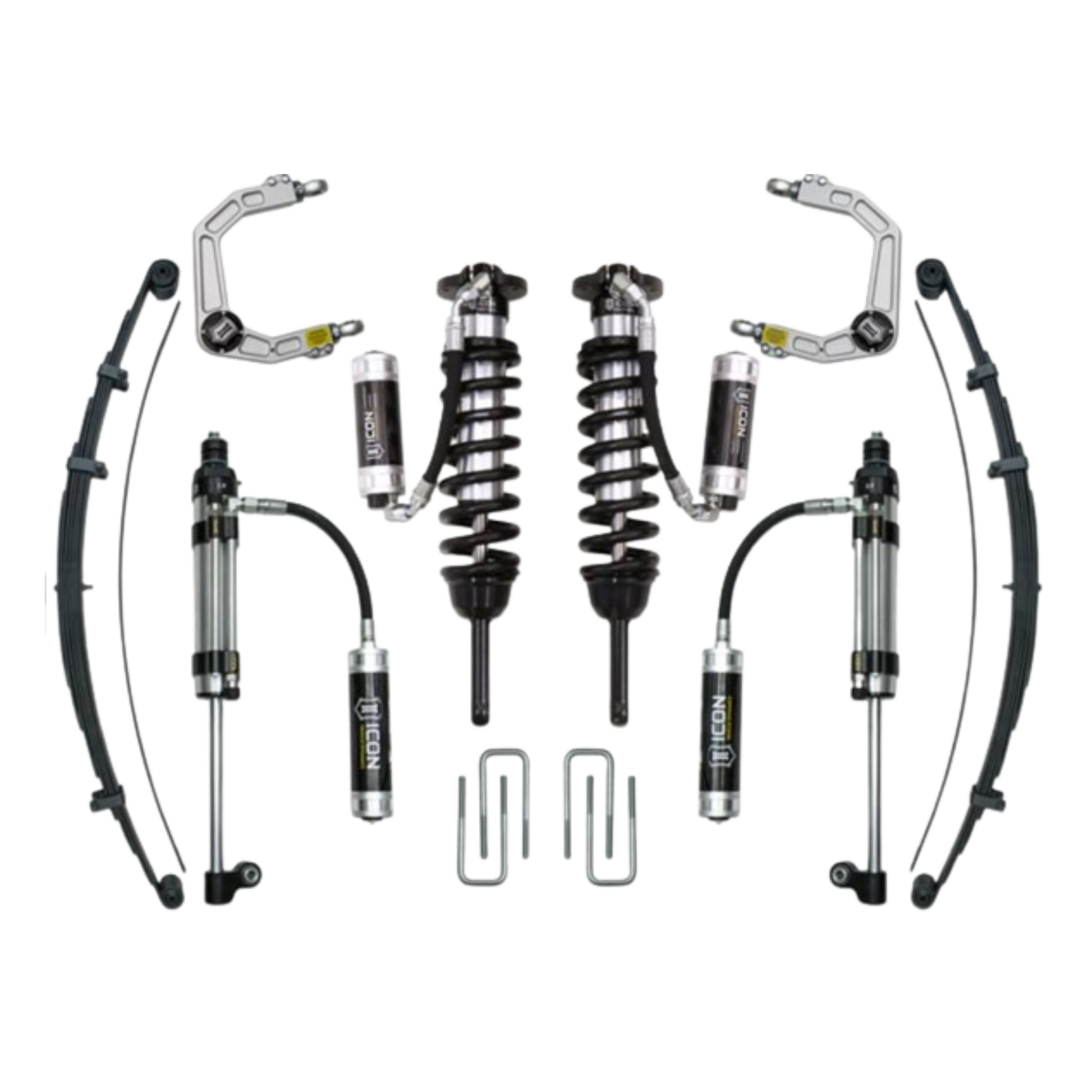

System Components:

  • 58735C (QTY: 1) | 05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT
  • 58550DJ (QTY: 1) | 05-UP TACOMA BILLET UCA DJ KIT
  • 158505 (QTY: 2) | 05-23 TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
  • 52050 (QTY: 1) | TOYOTA REAR 8.0" U-BOLT KIT
  • 59926P (QTY: 1) | 05-UP TACOMA RXT REAR 2.5 OMEGA RR PAIR

SKU:314549D
