Icon | 2.5" Body | VS Extended Travel | Remote Reservoir Coilovers | W/CDEV | Equipped W/700lb Coil Spring | Toyota Tacoma (2005-2023) | 58735E

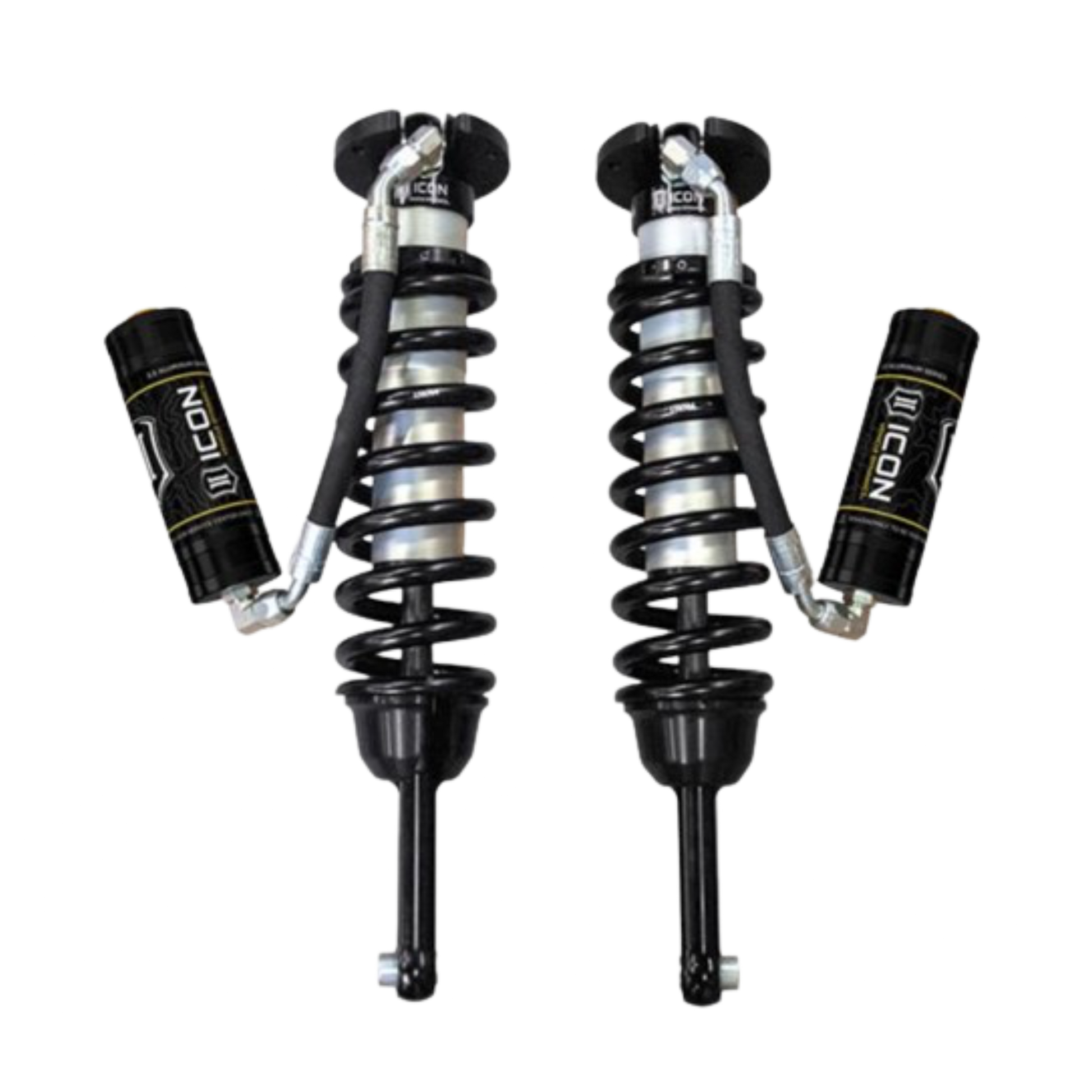

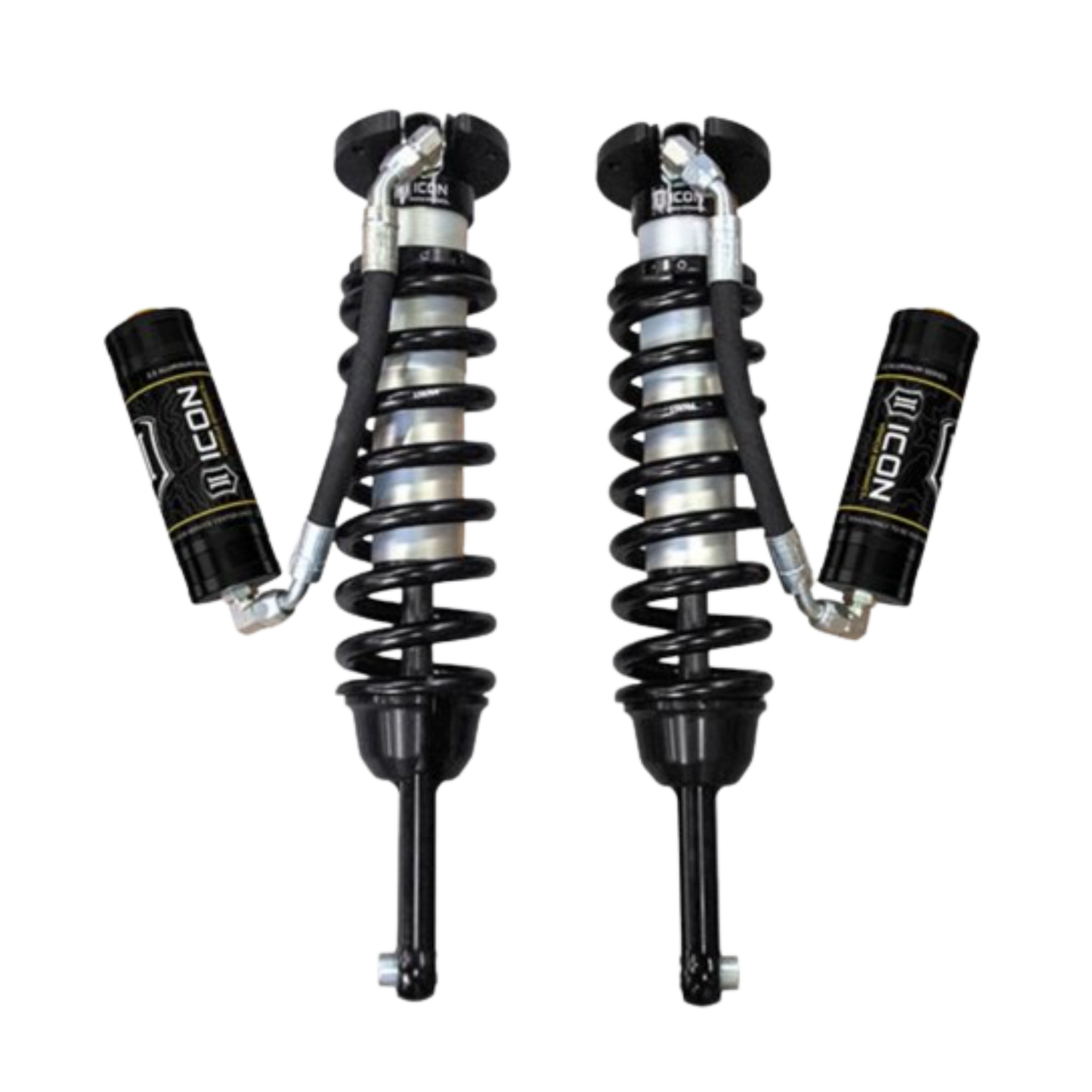

Icon 2.5" Body VS Extended Travel, Remote Reservoir Coilovers W/CDEV, Equipped W/700lb Coil Springs, 2005-2023 Toyota Tacoma

58735E-700

Application:

2005-2023 Toyota Tacoma

Features and Benefits:

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC) mobile app
• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 0-3.5" (2005-2015 models) or 0-2.75" (2016-2023 models) of lift height over stock
• ICON engineered coil springs with 700 lbs/in spring rate
• External reservoirs to attain cooler operating temperatures during extended off-road use
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• FK rod end bearings for extended longevity and minimal deflection
• Bolt-on kit - no cutting or welding necessary for installation
• 100% Rebuildable
• 100% Revalveable

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
• APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
• APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
• TECH NOTE: Also requires installation of IIC kit (Part # 53502 or 53507) and CDEV rear shocks (Part # 57826EP)
• TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
• TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
• TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
