Icon | 6" Lift | Stage 1 Suspension System

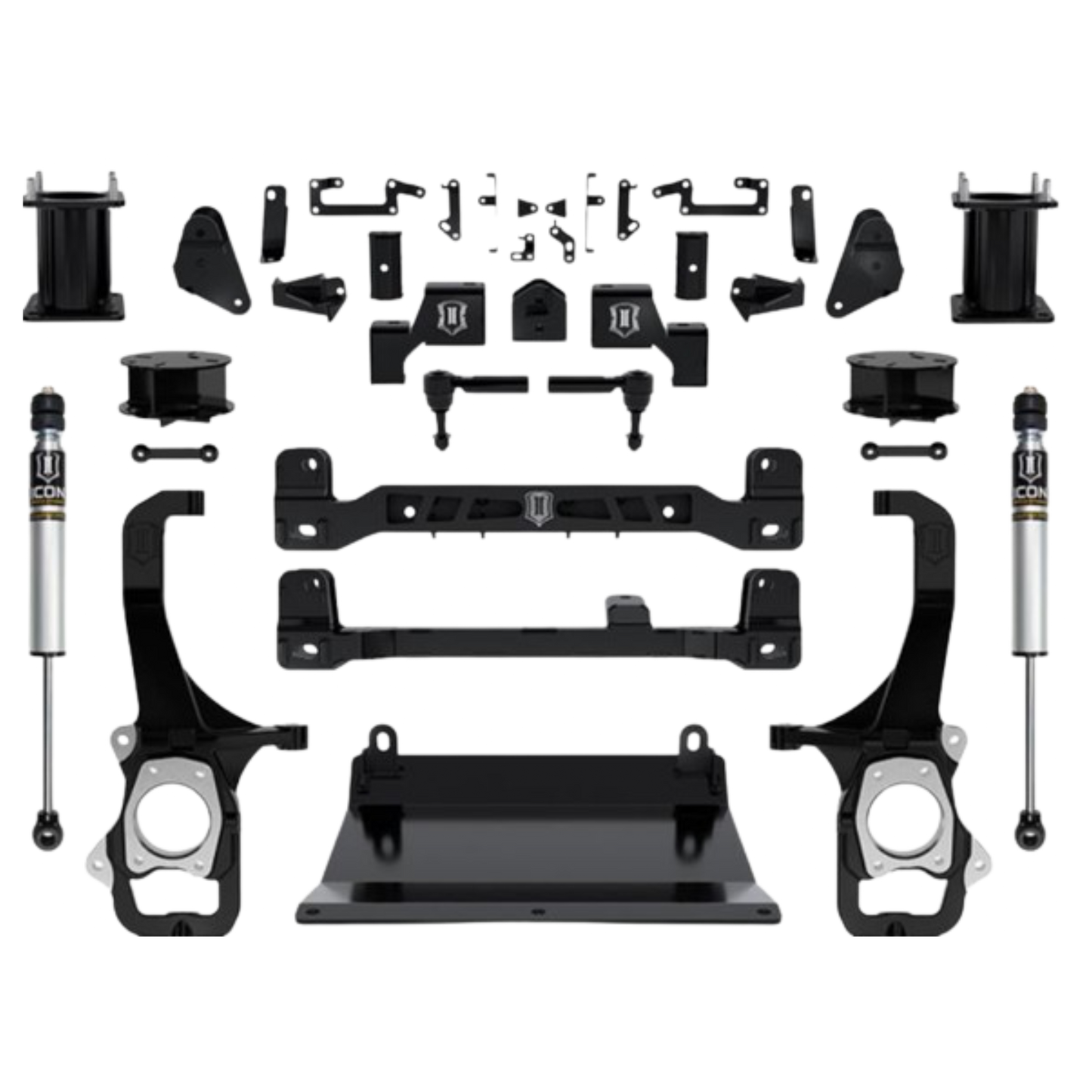

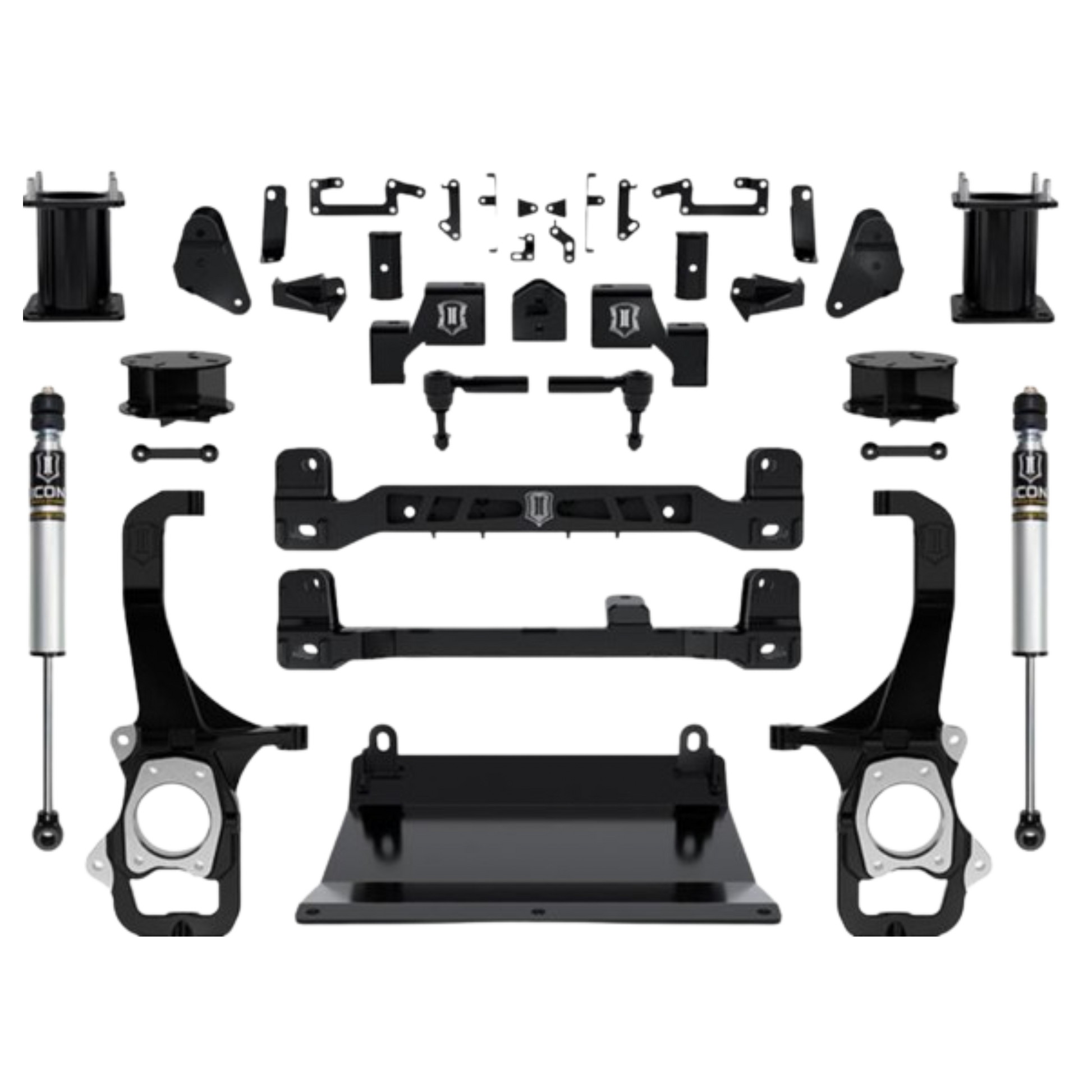

Icon 6" Lift Stage 1 Suspension System 2022+ Toyota Tundra

K53271

FEATURES & BENEFITS:

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Front coilover spacer kit with heavy duty steel construction
• Provides 6" front suspension lift with only 4" of crossmember drop
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks to improve rear suspension performance
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

TECH INFO:

• OEM Wheels & Tires Fitment: No
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #144: Not Compatible With Trd Pro
• APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
• APPLICATION NOTE #154: Not Compatible With Tundra Sr5 Equipped With Trd Sport Package
• APPLICATION NOTE #155: May Require Recalibration Of Toyota Safety Sense System After Install
• TECH NOTE: Requires minimum of 20" diameter wheels

SYSTEM COMPONENTS:

• 51010 (QTY: 1) | 22+ TUNDRA FRONT BOX KIT 1
• 51011 (QTY: 1) | 22+ TUNDRA FRONT BOX KIT 2
• 51012 (QTY: 1) | 22+ TUNDRA REAR BOX KIT
• 51014 (QTY: 1) | 22+ TUNDRA FRONT KNUCKLE KIT
• 51015 (QTY: 1) | 22+ TUNDRA/23+ SEQUOIA 6" COILOVER SPACER KIT
• 51016 (QTY: 1) | 22+ TUNDRA REAR COIL SPACER KIT
• 51017 (QTY: 1) | 22+ TUNDRA FRONT SKID PLATE
• 56517 (QTY: 2) | 22+ TUNDRA 3.5" REAR 2.0 VS IR
