Dirt King Long Travel Spring Under Kit, 2005-2023 Toyota Tacoma

Dirt King Long Travel Spring Under Kit, 2005-2023 Toyota Tacoma

DK-811848

Application:

2005-2023 Tacoma 2WD / 4WD

Description:

The long travel spring under kit was designed for maximum rear suspension performance without making the installation difficult for average person. For best results this kit should be combined with the Dirt King bedcage and Deaver H70HD leaf under springs. The complete package paired with a custom drive shaft allows for 18" of usable travel. The factory drive shaft can be retained but will limit 2" of down travel. Even with the 2" travel loss it still achieves a respectable 16" of wheel travel.

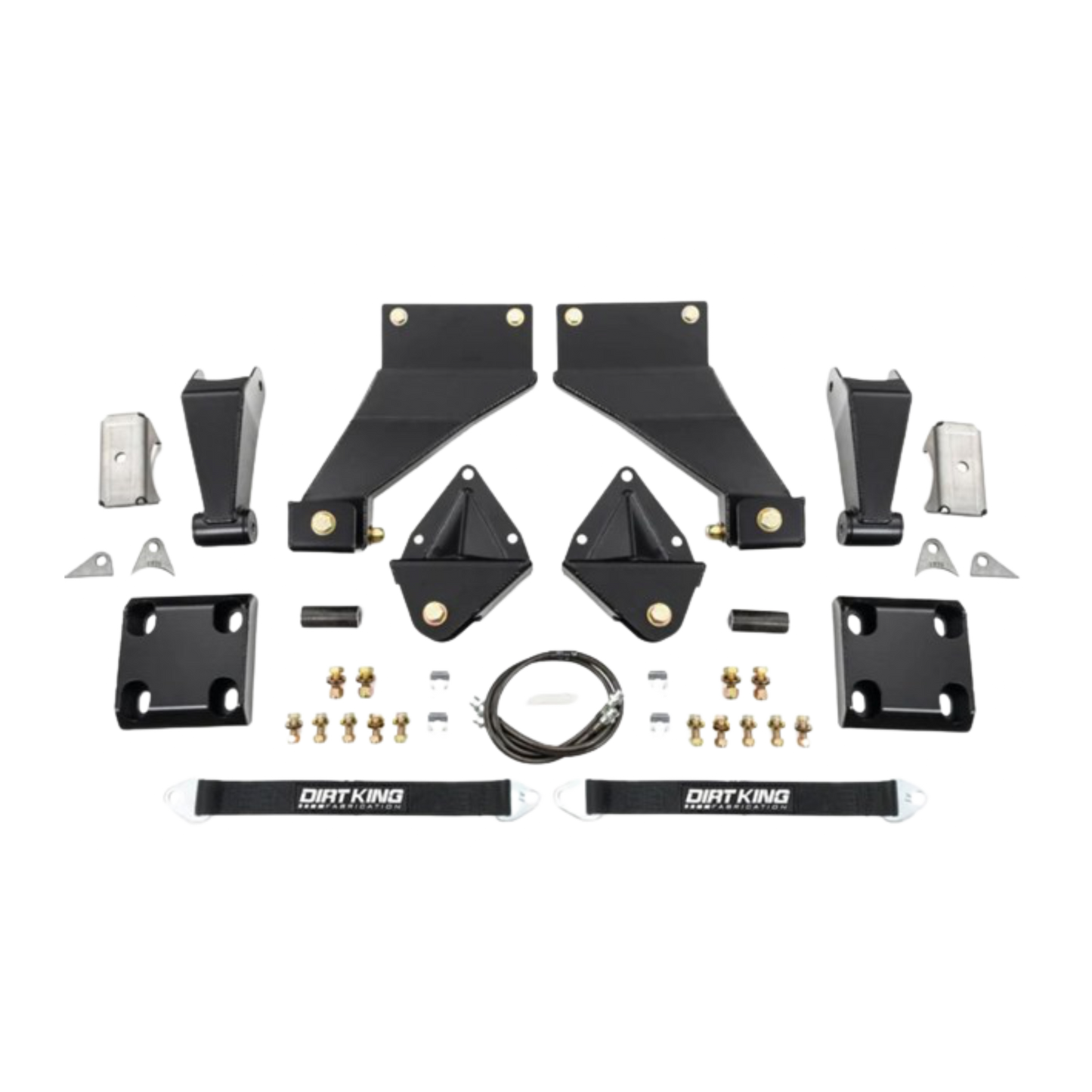

Components:

• Long travel shackles
• Leaf under u-bolt plates
• Leaf under front hangers
• Rear shackle hangers
• 18" quad wrapped limit straps
• Weld on limit strap tabs
• Leaf spring perches
• DOT approved extended brake lines
• Grade 8 mounting hardware
